创建密钥库
ENCRYPTION_WALLET_LOCATION =(SOURCE =(METHOD = FILE)(METHOD_DATA =
(DIRECTORY = /u01/app/oracle/admin/$ORACLE_SID/encryption_keystore/)))
保存密钥库的目录
mkdir -p /u01/app/oracle/admin/$ORACLE_SID/encryption_keystore

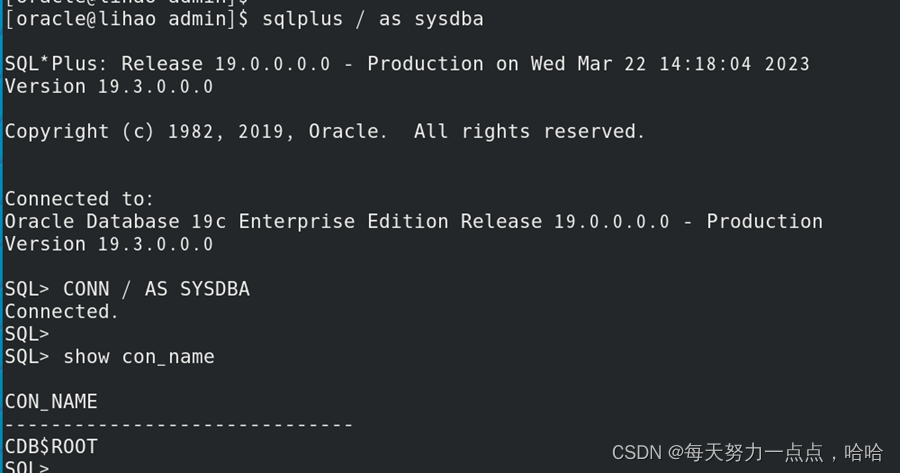

连接到根容器并创建密钥库
CONN / AS SYSDBA
ADMINISTER KEY MANAGEMENT CREATE KEYSTORE '/u01/app/oracle/admin/cdb1/encryption_keystore/' IDENTIFIED BY AAbb1234;
查看
HOST ls /u01/app/oracle/admin/cdb1/encryption_keystore/
打开和关闭密钥库
ADMINISTER KEY MANAGEMENT SET KEYSTORE OPEN IDENTIFIED BY AAbb1234 CONTAINER=ALL;
ADMINISTER KEY MANAGEMENT SET KEYSTORE CLOSE IDENTIFIED BY AAbb1234 CONTAINER=ALL;
创建并激活一个主密钥
ADMINISTER KEY MANAGEMENT SET KEY IDENTIFIED BY AAbb1234 WITH BACKUP CONTAINER=ALL;密钥库的信息

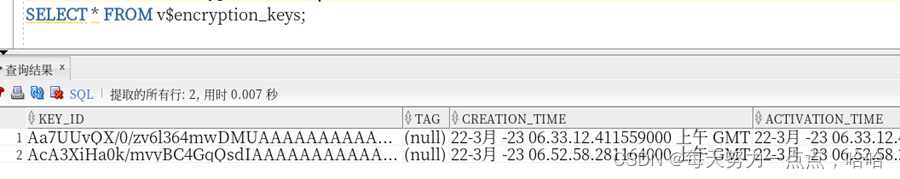

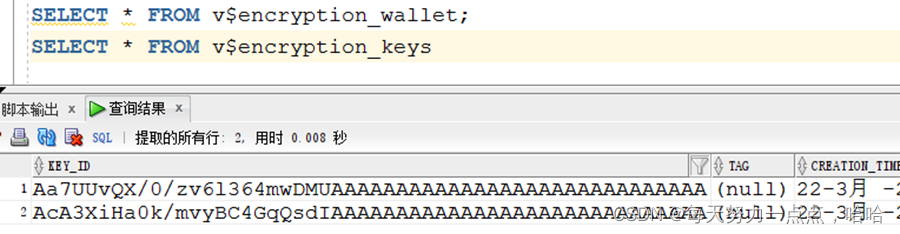

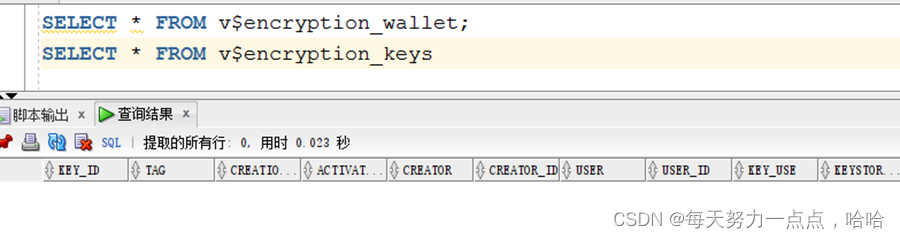

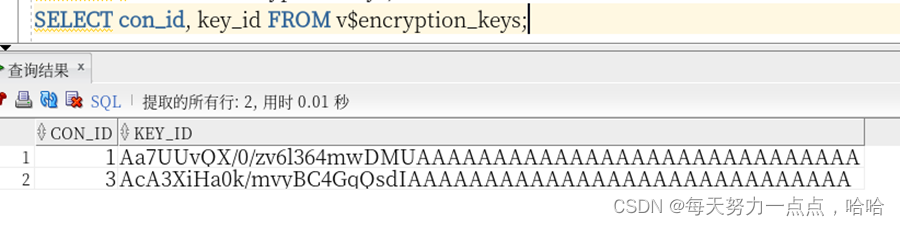

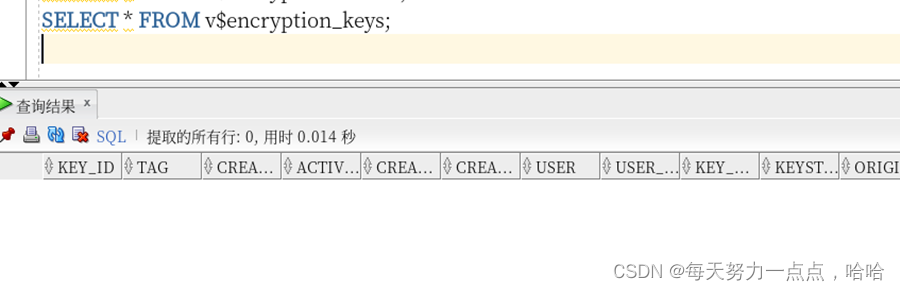

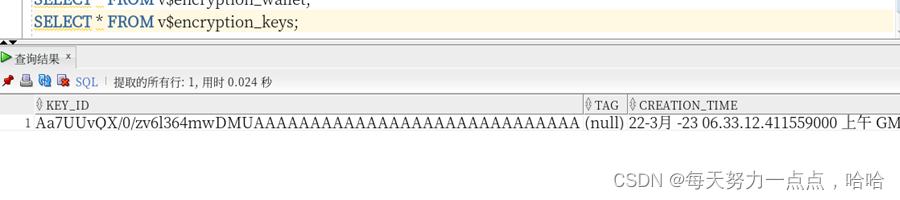

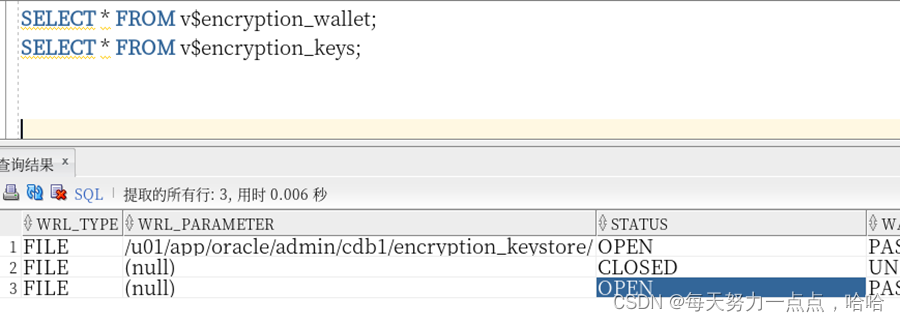

SELECT con_id, key_id FROM v$encryption_keys;

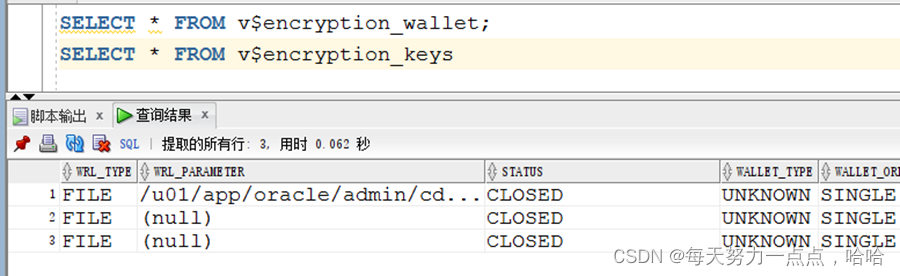

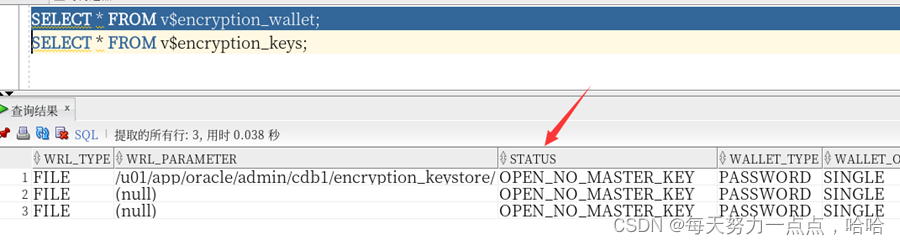

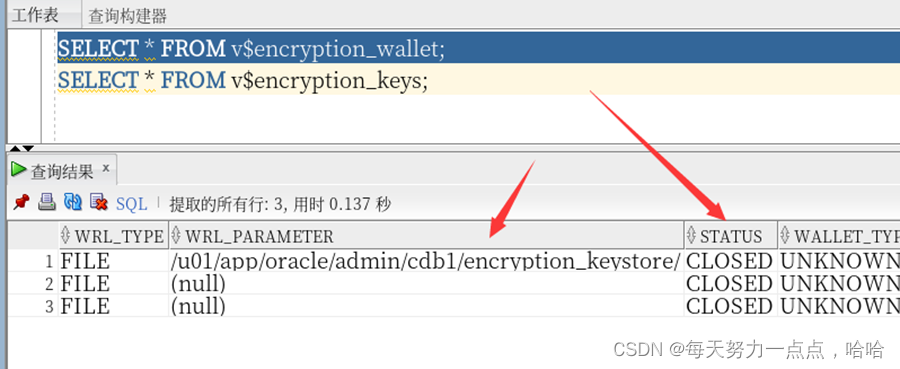

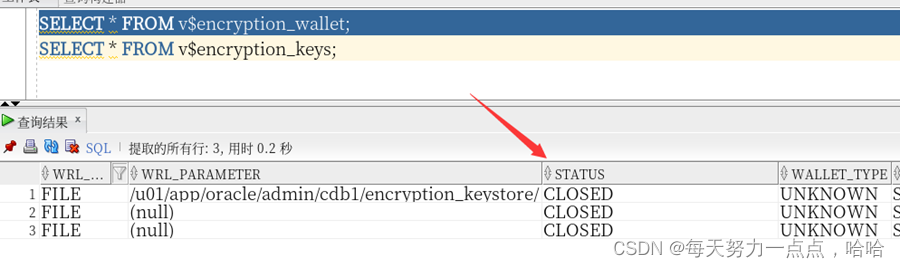

SELECT * FROM v$encryption_wallet;
加密表空间

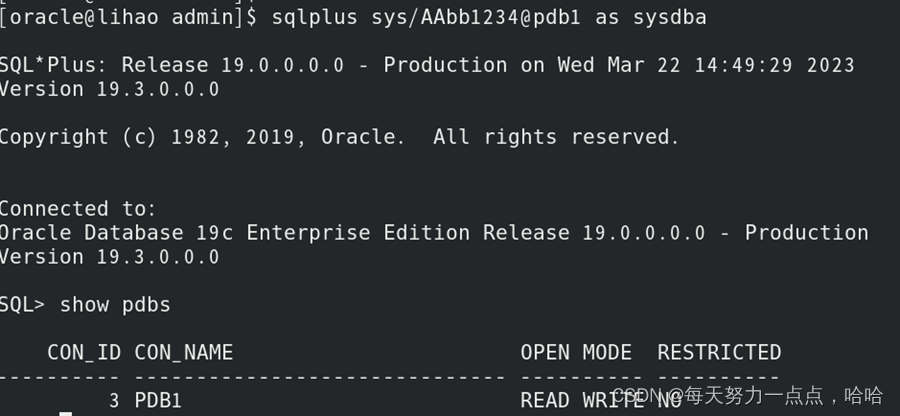

CONN sys@pdb1 AS SYSDBACREATE TABLESPACE encrypted_ts
DATAFILE SIZE 128K
AUTOEXTEND ON NEXT 64K
ENCRYPTION USING 'AES256'
DEFAULT STORAGE(ENCRYPT);ALTER USER test QUOTA UNLIMITED ON encrypted_ts;
测试用户CREATE USER lihao IDENTIFIED BY AAbb1234;GRANT CREATE SESSION TO lihao;创建表
CONN test/test@pdb1-- Encrypted column
CREATE TABLE tde_test (id    NUMBER(10),data  VARCHAR2(50) ENCRYPT
);INSERT INTO tde_test VALUES (1, 'This is a secret!');
COMMIT;

创建密钥库

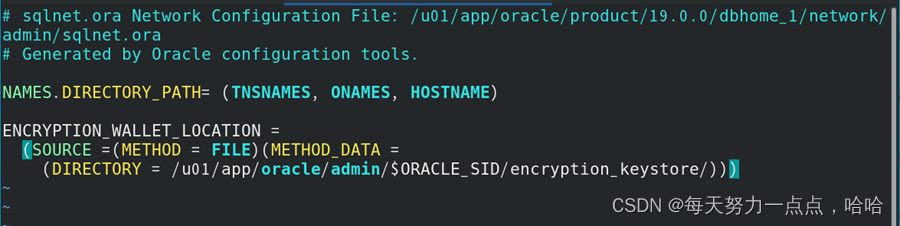

ENCRYPTION_WALLET_LOCATION =

  (SOURCE =(METHOD = FILE)(METHOD_DATA =

(DIRECTORY = /u01/app/oracle/admin/$ORACLE_SID/encryption_keystore/)))

保存密钥库的目录

mkdir -p /u01/app/oracle/admin/$ORACLE_SID/encryption_keystore

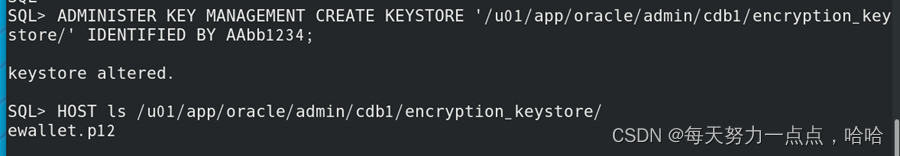

ADMINISTER KEY MANAGEMENT CREATE KEYSTORE '/u01/app/oracle/admin/cdb1/encryption_keystore/' IDENTIFIED BY AAbb1234;

HOST ls /u01/app/oracle/admin/cdb1/encryption_keystore/

打开和关闭密钥库

ADMINISTER KEY MANAGEMENT SET KEYSTORE OPEN IDENTIFIED BY AAbb1234 CONTAINER=ALL;

ADMINISTER KEY MANAGEMENT SET KEYSTORE CLOSE IDENTIFIED BY AAbb1234 CONTAINER=ALL;

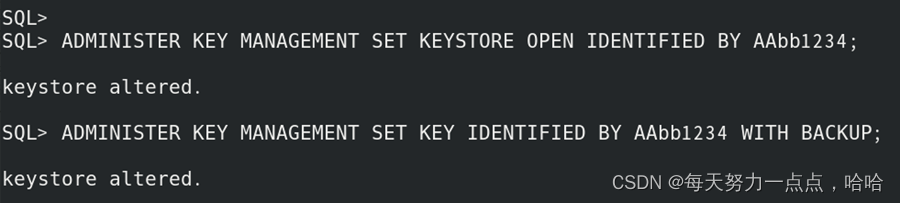

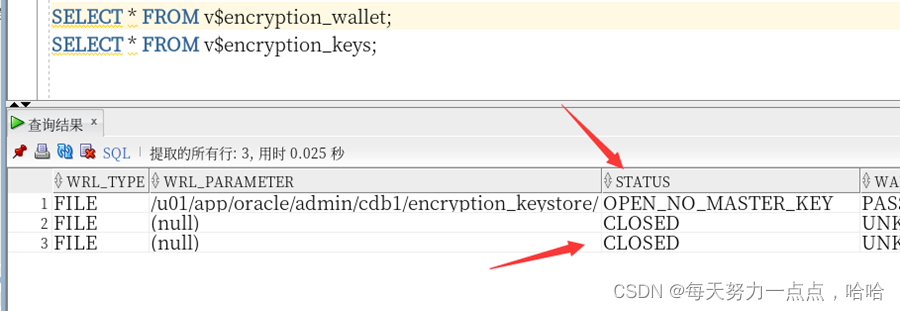

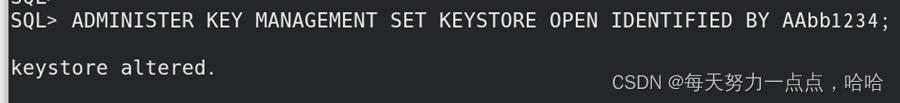

ADMINISTER KEY MANAGEMENT SET KEYSTORE OPEN IDENTIFIED BY AAbb1234;

在根容器中创建并激活一个主密钥

ADMINISTER KEY MANAGEMENT SET KEY IDENTIFIED BY AAbb1234 WITH BACKUP;

PDB创建主密钥

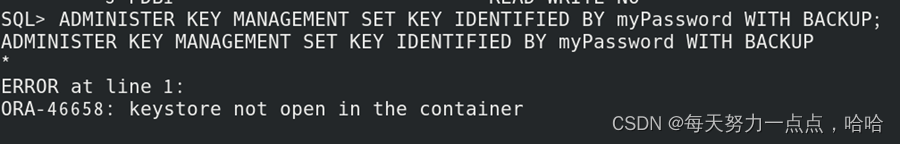

ADMINISTER KEY MANAGEMENT SET KEY IDENTIFIED BY myPassword WITH BACKUP;

数据库关闭在开后

使用 TDE 的密钥库

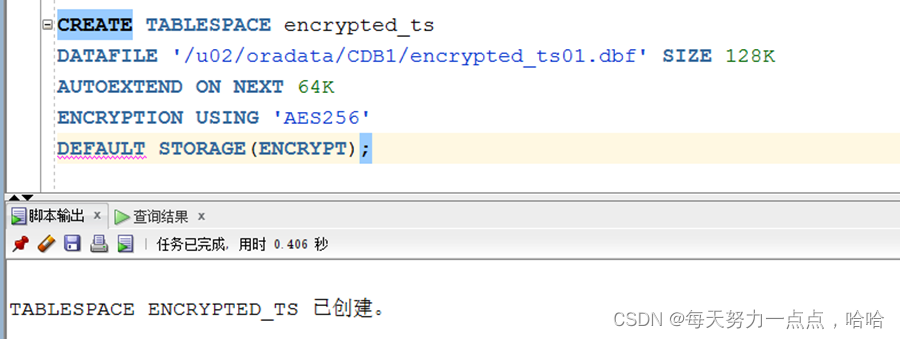

CREATE TABLESPACE encrypted_ts

DATAFILE '/u02/oradata/CDB1/encrypted_ts01.dbf' SIZE 128K

AUTOEXTEND ON NEXT 64K

ENCRYPTION USING 'AES256'

DEFAULT STORAGE(ENCRYPT);

测试用户

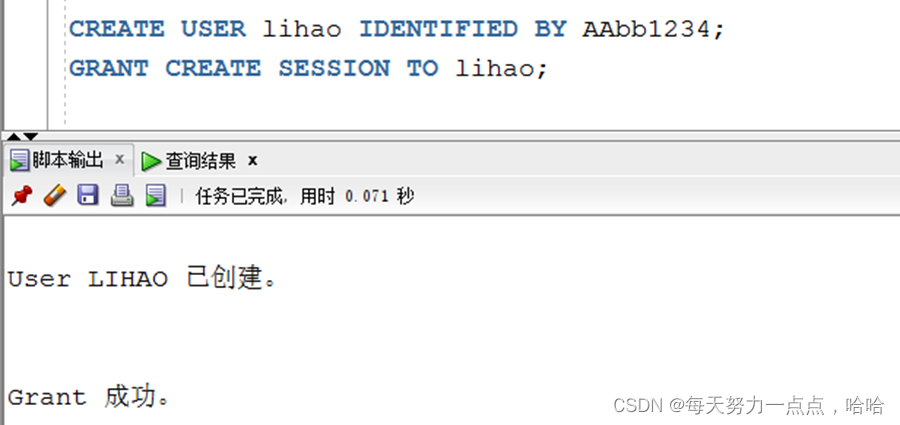

CREATE USER lihao IDENTIFIED BY AAbb1234;

GRANT CREATE SESSION TO lihao;

grant create table to lihao;

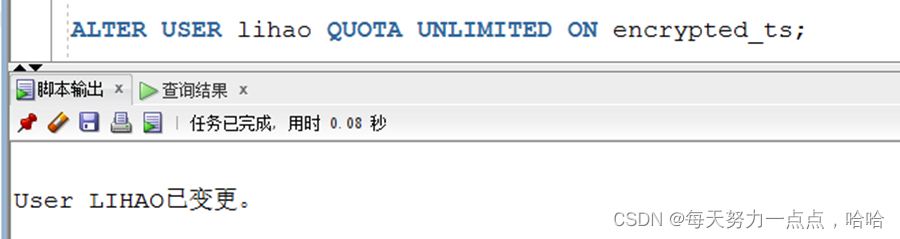

ALTER USER lihao QUOTA UNLIMITED ON encrypted_ts;

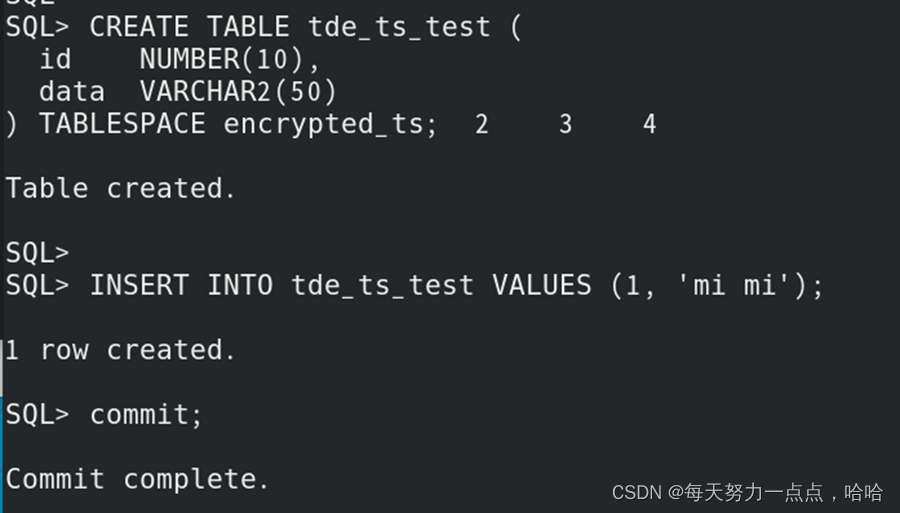

创建表

CREATE TABLE tde_ts_test (

  id    NUMBER(10),

  data  VARCHAR2(50)

) TABLESPACE encrypted_ts;

INSERT INTO tde_ts_test VALUES (1, 'mi mi');

Commit;

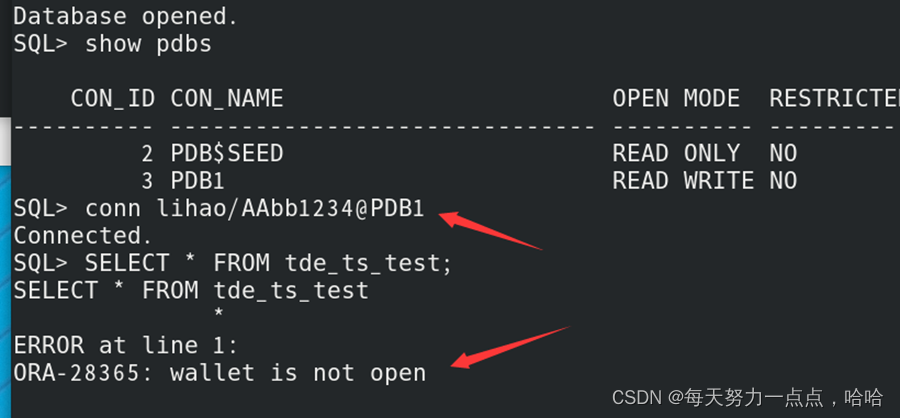

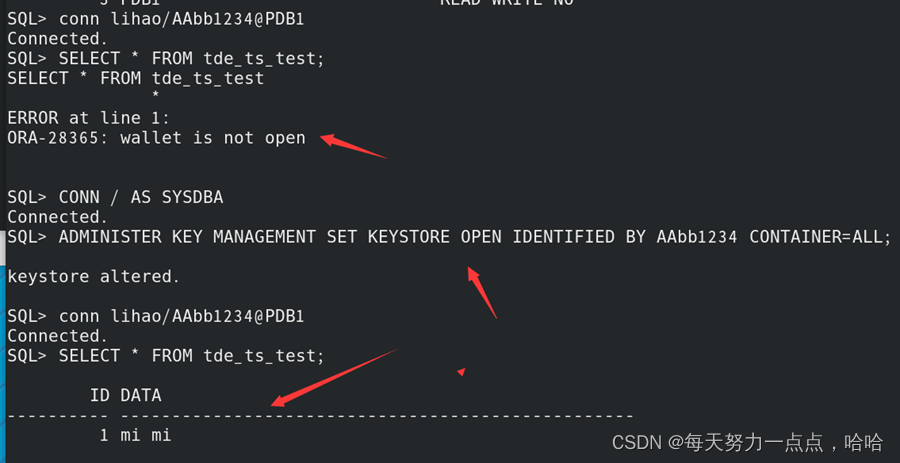

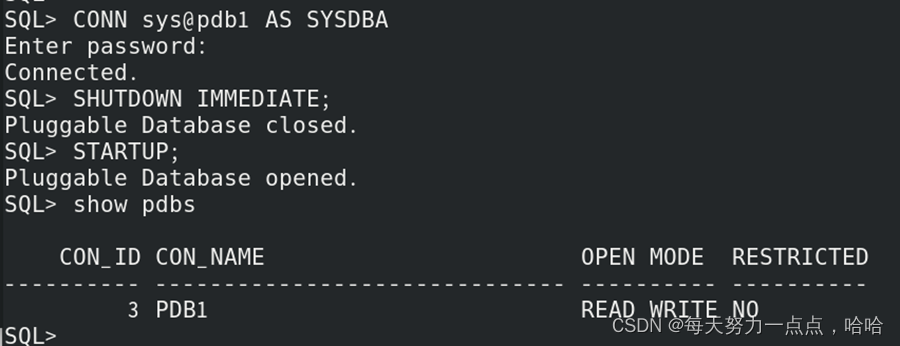

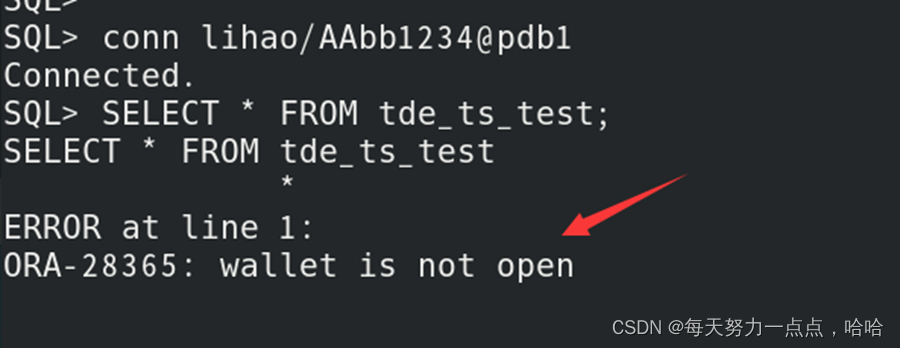

PDB重新启动，则必须先在PDB中打开密钥库，然后才能访问数据

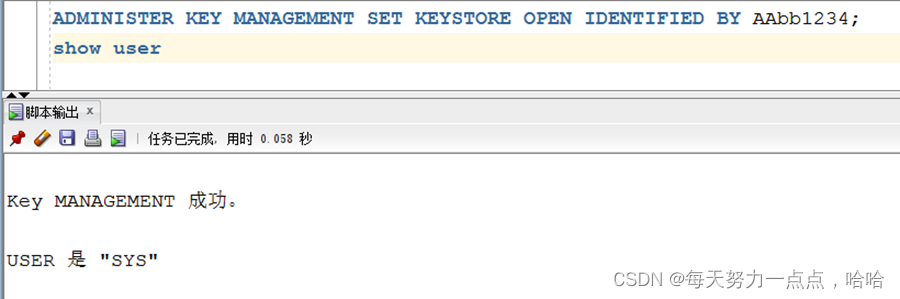

ADMINISTER KEY MANAGEMENT SET KEYSTORE OPEN IDENTIFIED BY AAbb1234;

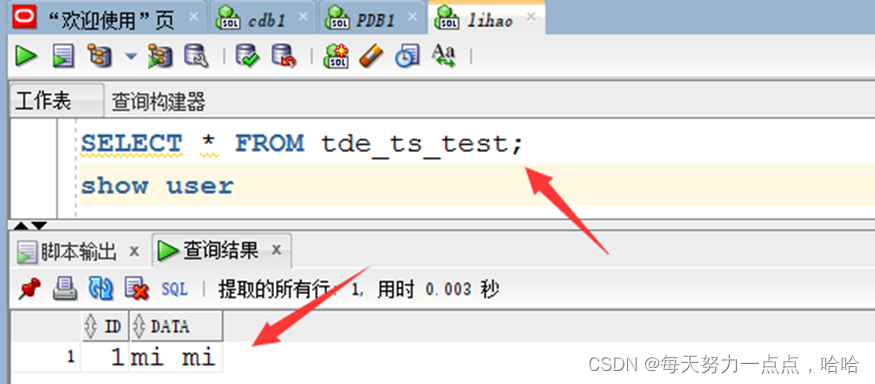

show user

SELECT * FROM tde_ts_test;

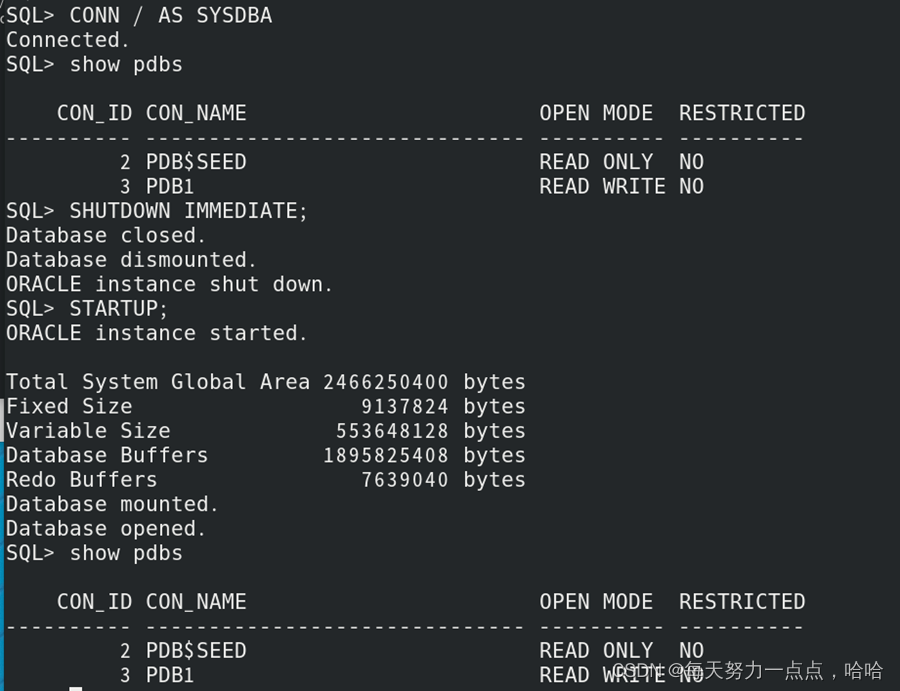

重新启动CDB，则必须在CDB和PDB 中打开密钥库
